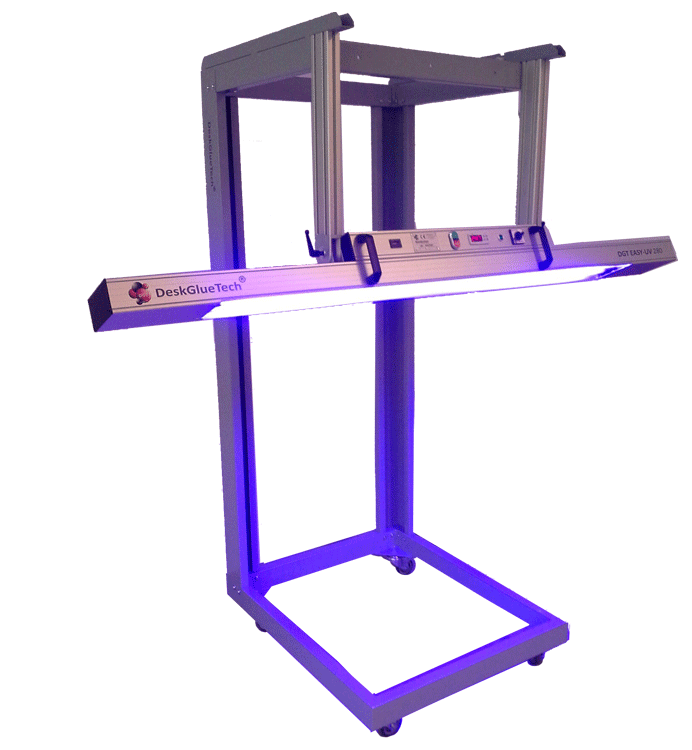

©DGT EASY UV 280
©DGT EASY UV 280 is a work station designed to glue methacrylate (PMMA). It is made up of a trolley and a couple of 2 meter UV lamps equipped with a 180° tilting device, timer and protections.
It is the least complex and powerful lamp, but still apt for a professional use.
It is adaptable to your universal gluing ©DGT TABLE
The cost includes a professional training course in our headquarter. The course is 7 hours long and dedicated to learning the DeskGlueTech™ with its gluing protocols, and to the use of the machinery purchased; also included the right, valid for a year and renewable yearly, to receive the technical consultancy of our technicians any time is necessary.
During the course, the operators that will take part in it, will learn to use all the machineries purchased and the new rules and protocols which DGT and its glues and instruments offer to work better, saving time.

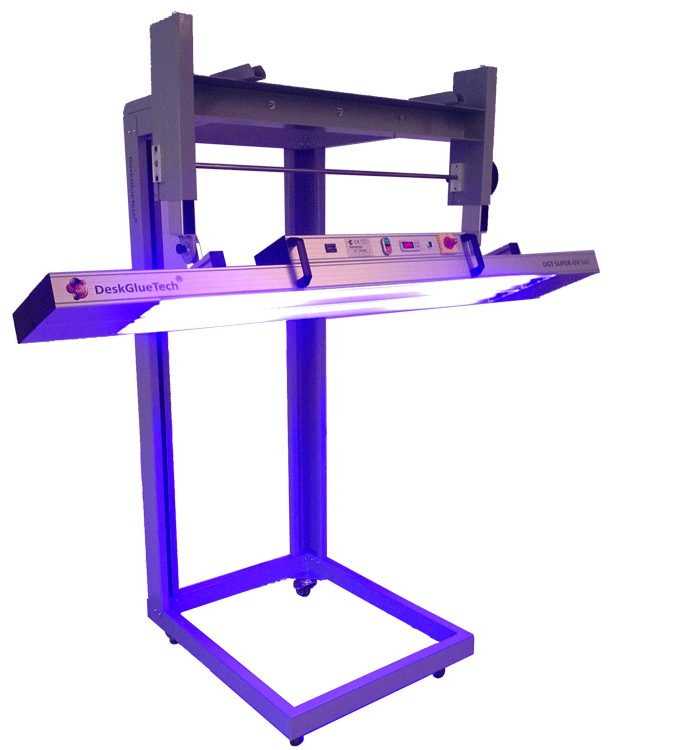

©DGT SUPER UV 560 Manual Tilt
©DGT Super UV 560 Manual Tilt is a high-speed and powered work station designed to glue methacrylate (PMMA). It is made up of a trolley and a double couple UV lamps equipped with a tilting device and electrical and precision height-adjusting system. The lamps are UV ray special light sources with 560 Watt power. The lamp has a 90 degree operating range and the max. distance allowed for gluing is 260 mm. The workstation is completed by a timer and protections.
The workstation is high powered and manages manual adjustments It´s a good compromise between work capacity and budget.
It is adaptable to your universal gluing ©DGT TABLE
The cost includes a professional training course in our headquarter. The course is 7 hours long and dedicated to learning the DeskGlueTech™ with its gluing protocols, and to the use of the machinery purchased; also included the right, valid for a year and renewable yearly, to receive the technical consultancy of our technicians any time is necessary.
During the course, the operators that will take part in it, will learn to use all the machineries purchased and the new rules and protocols which DGT and its glues and instruments offer to work better, saving time.

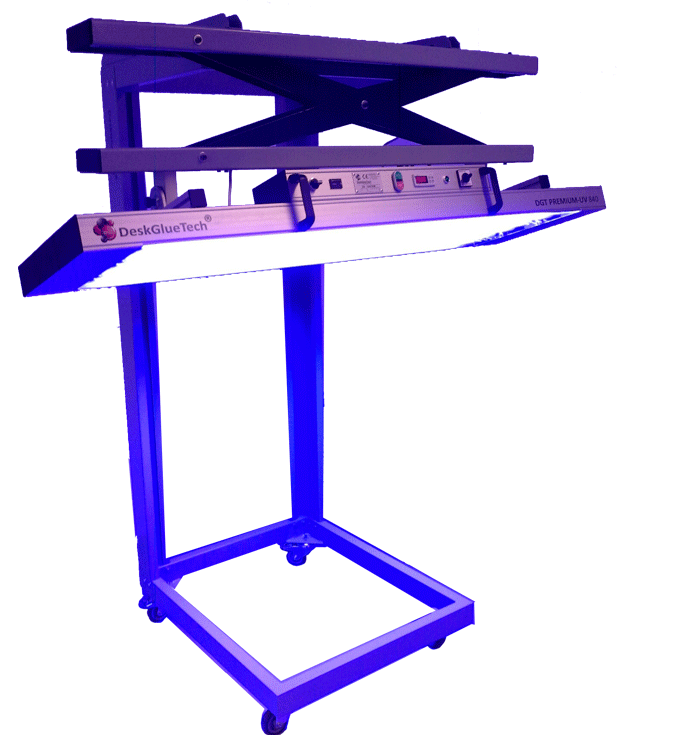

©DGT PREMIUM UV-840 Electric Tilt
©DGT PREMIUM UV-840 Electric Tilt is a high-power work station designed to glue methacrylate (PMMA). It is made up of a trolley and a three couple UV lamps equipped with a tilting device and electrical and precision height-adjusting system that is totally electric and powered by the lamp itself. The lamps are UV ray special light sources with 840 Watt power. The lamp has a 120 degree operating range and the max. distance allowed for gluing is 730 mm ( adjustable thanks to a switch on the lamp). The workstation is completed by a timer and protections.
The workstation is high power and very adjustable. It’s a very manageable equipment and very flexible, especially useful for large dimension gluing.
It is adaptable to your universal gluing ©DGT TABLE
The cost includes a professional training course in our headquarter. The course is 7 hours long and dedicated to learning the DeskGlueTech™ with its gluing protocols, and to the use of the machinery purchased; also included the right, valid for a year and renewable yearly, to receive the technical consultancy of our technicians any time is necessary.
During the course, the operators that will take part in it, will learn to use all the machineries purchased and the new rules and protocols which DGT and its glues and instruments offer to work better, saving time.

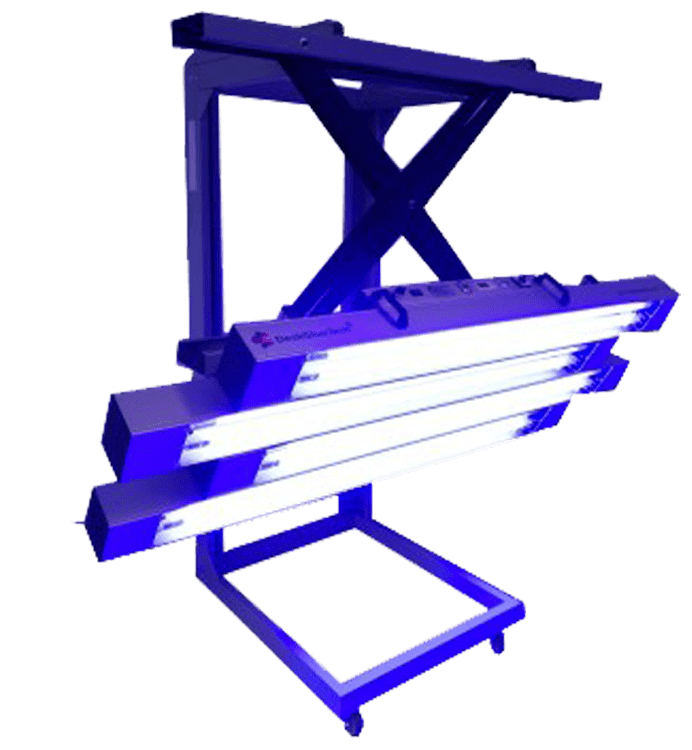

©DGT MAXIMUS UV-1120 Electric Tilt
©DGT PREMIUM UV-840 Electric Tilt is the max high-speed and powered work station designed to glue methacrylate (PMMA). It is made up of a trolley and one unit of 8 UV not allined lamps equipped with a tilting device and electrical precision height-adjusting.
The lamps are UV ray special light sources with 1.120 Watt power and they require connection to a 220 volt power supply.
The lamp has a 90 degree operating range and the max distance allowed for gluing is 800 mm. The adjustment of tilt is till 730 mm height!
It is suitable with universal gluing table DGT TABLE. It is designed for big volume and big size of product in a comfort and performance solution
The cost includes a professional training course in our headquarter. The course is 7 hours long and dedicated to learning the DeskGlueTech™ with its gluing protocols, and to the use of the machinery purchased; also included the right, valid for a year and renewable yearly, to receive the technical consultancy of our technicians any time is necessary.
During the course, the operators that will take part in it, will learn to use all the machineries purchased and the new rules and protocols which DGT and its glues and instruments offer to work better, saving time.

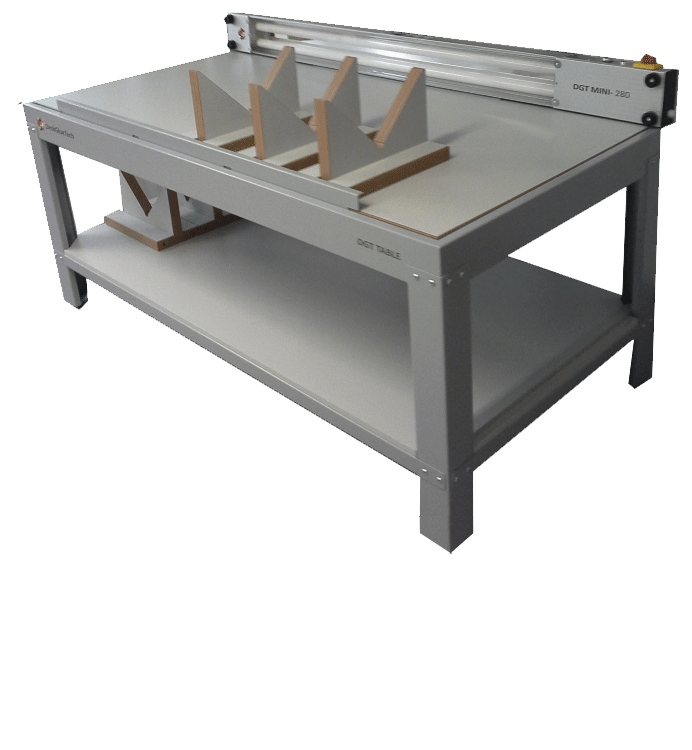

©DGT TABLE
©DGT TABLE is not a simple working table, but a real professional and highly technical table.
It is equipped with a special top that does not scratch the methacrylate and made with a material resistant to the most aggressive glues and solvents.
In case of usage, after years of works, it can be flipped and reused as both sides have been treated.
Weight is 50 Kg, measures are 2mt x 1mt. The table is completely stable and balanced.
The lower top is useful to hold equipment and material through all the gluing phases, keeping the working area free and clean.
Can be totally unassembled to reduce transport and packaging costs.
Accessorized with:
1- ©DGT MINI HANDHOLD UV LAMP 140WATT with 1 UV bulb to facilitate and speed gliung
This UV lamp support can be moved, depending on the gluing need, and fixed in all 4 sides of the table.
It is useful and indicated specially for big pieces.
It can be used separately from the table also, as UV Portable Lamp, to use in external area is necessary.
2- N° 3 magnetic shoulders for 45°/90° and a positioning bar to permit to fix them along the side of the workbench
3- N° 2 magnetic shoulders for 90° big size
4- N° 1 magnetic prism for 90° + 90° (angle solution)
Version without accessories available only on request.

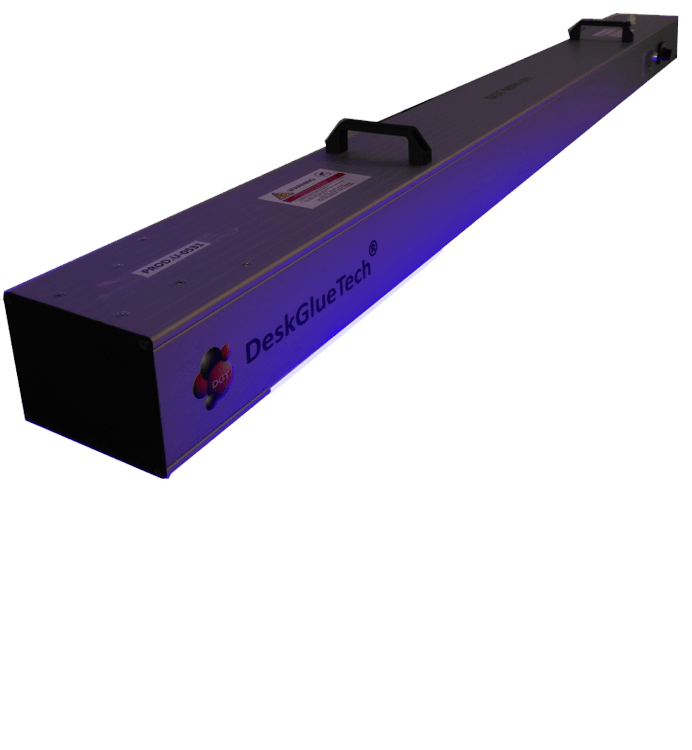

©DGT MINI UV-140 Portable Lamp
©DGT MINI UV-140 is an extremely lightweight accessory component, useful for off-site applications. It is made from a lightweight structure for a practical and safe handling.
a source of UV tube 140 watt of 170 cm with a power of 140 watts, a practical handle and manipulation of an power button with the control light.
Size: 180 cm x 16 cm x 16 cm.
Extremely light weight: 4.2 kg
UV power: 40 watts (irradiated area 60 cm x 30 cm)
UV technology
On / Off without UV output delays with energy always available to 100%

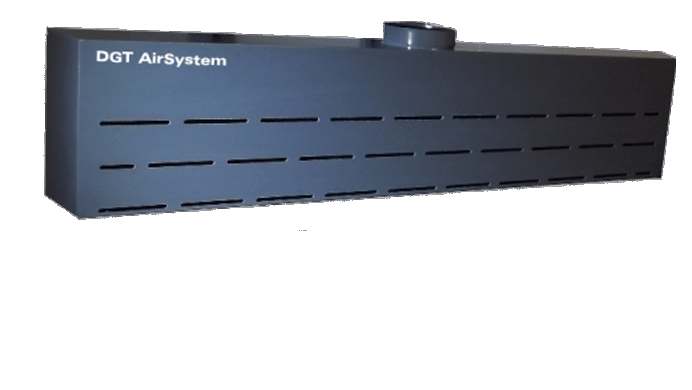

©DGT AIR SYSTEM
©DGT AIR SYSTEM is the only PVC Gray extractor hood, designed for air evacuation and solvents around the gluing table.
It has an internal structure that allows a constant and tangential suction along its entire length of 2.000 mm.
To be effective has to be connected through a 200 mm diameter tube of a suction system ( not included ) which has a capacity of 1000 cubic meters per hour.

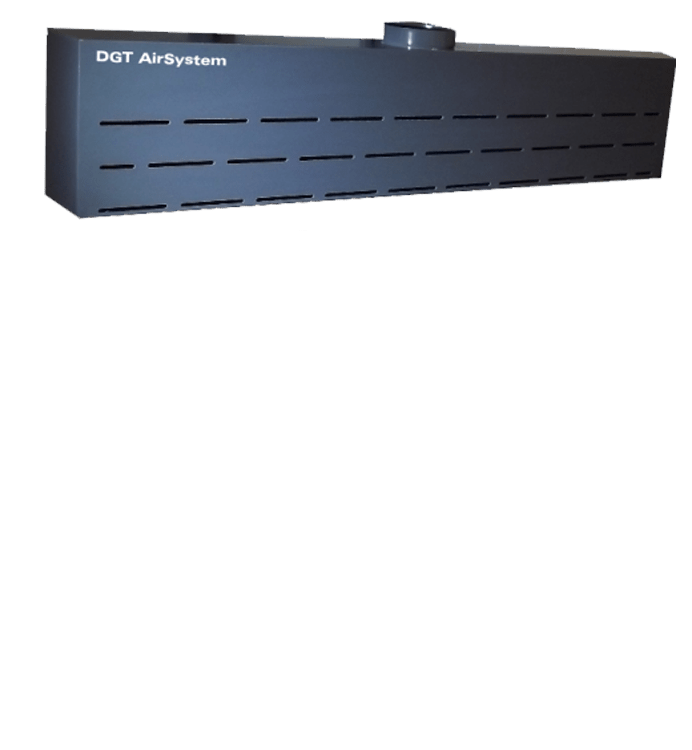

©DGT AIR SYSTEM & AIR FILTER
©DGT AIR SYSTEM is the PVC Gray extractor hood and trolley box with centrifugal suction engine, conveyor and box filters, 10 filters Carbon SC45 .
Designed for air evacuation and solvents around the gluing table. It has an internal structure that allows a constant and tangential suction along its entire length of 2.000 mm.
The extractor Hood is connected to a AirFilter trolley with a tube 200 mm diameter (maximum permissible length is 2.5 mt. ) and the AirFilter Trolley , thanks to its centrifugal engine 0,37 Kw and 10 Carbon SC45 filters allows to purify the air so that it can be introduce the external environment without any dangerous residue.
